DW735

13-In. (330mm) Corded Electric Three Knife, Two Speed Thickness Planer (15 Amp)

A DEWALT DW735 benchtop planer in yellow and black, with visible adjustment knobs, measurement scale, and safety warnings on the front panel. The machine is designed for smoothing and sizing wood surfaces.

Reviews

Product details

The DW735 13 in. Three knife, two speed thickness planer is powered by a 15 amp motor to easily manage large cuts in wider materials. Three-knife cutter head with 10,000 RPM and feed speed options for 96 or 179 cpi provide optimal performance.

  • 13 in. 2-speed thickness planer, & dust hose adapter
  • Powerful 15 amp, 20,000 RPM motor handles larger cuts in wider materials with ease
  • Three-knife cutter head with 10,000 RPM cutter-head speed delivers 30% longer knife life and makes knife change faster and easier
  • Two-speed gear box allows users to change feed speed to optimizing cuts per inch at 96 or 179 cpi
  • Fan-assisted chip ejection vacuums chip off of the cutter head and exhausts them out of the machine
  • 19-3/4 in. Cast aluminum base is 2x more rigid than a standard 10 in. Base and folding tables
  • Automatic carriage lock reduces the movement that causes snipe without the need for manual engagement by the user
  • Material removal gauge and extra large, thickness scale delivers accurate cuts with every pass
  • extra large, turret depth stop allows user to return to most frequently used thicknesses with ease
  • UL listed

Product Type
Thickness Planers
Power Source
Electric
Cordless or Corded
Corded
Amperage
15
Blade Type
Planer Knife

  • (1) 13-Inch (330mm) Corded Electric Three Knife, Twp Speed Thinkness Planer
  • (1) Dust Hose Adapter
  • (1) Thickness Planer Crank Handle
  • (1) Blade Change T-Wrench

  • 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

  • Prop 65 Generic WarningYes

Downloads and manuals

Instruction Manual, Type 12
N486408_DW735_NA.pdf
PDF

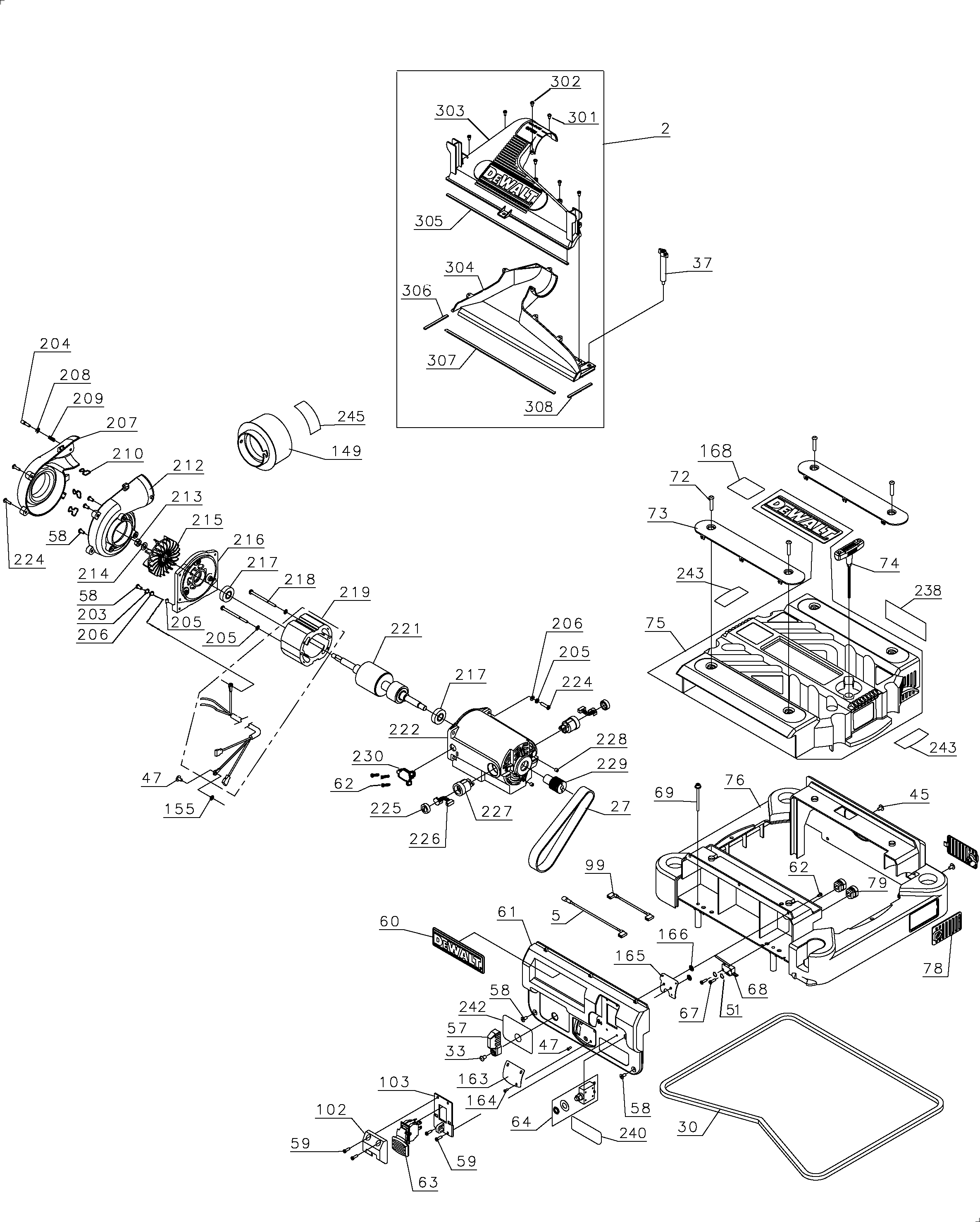

Exploded Diagram, Type 12
GIF

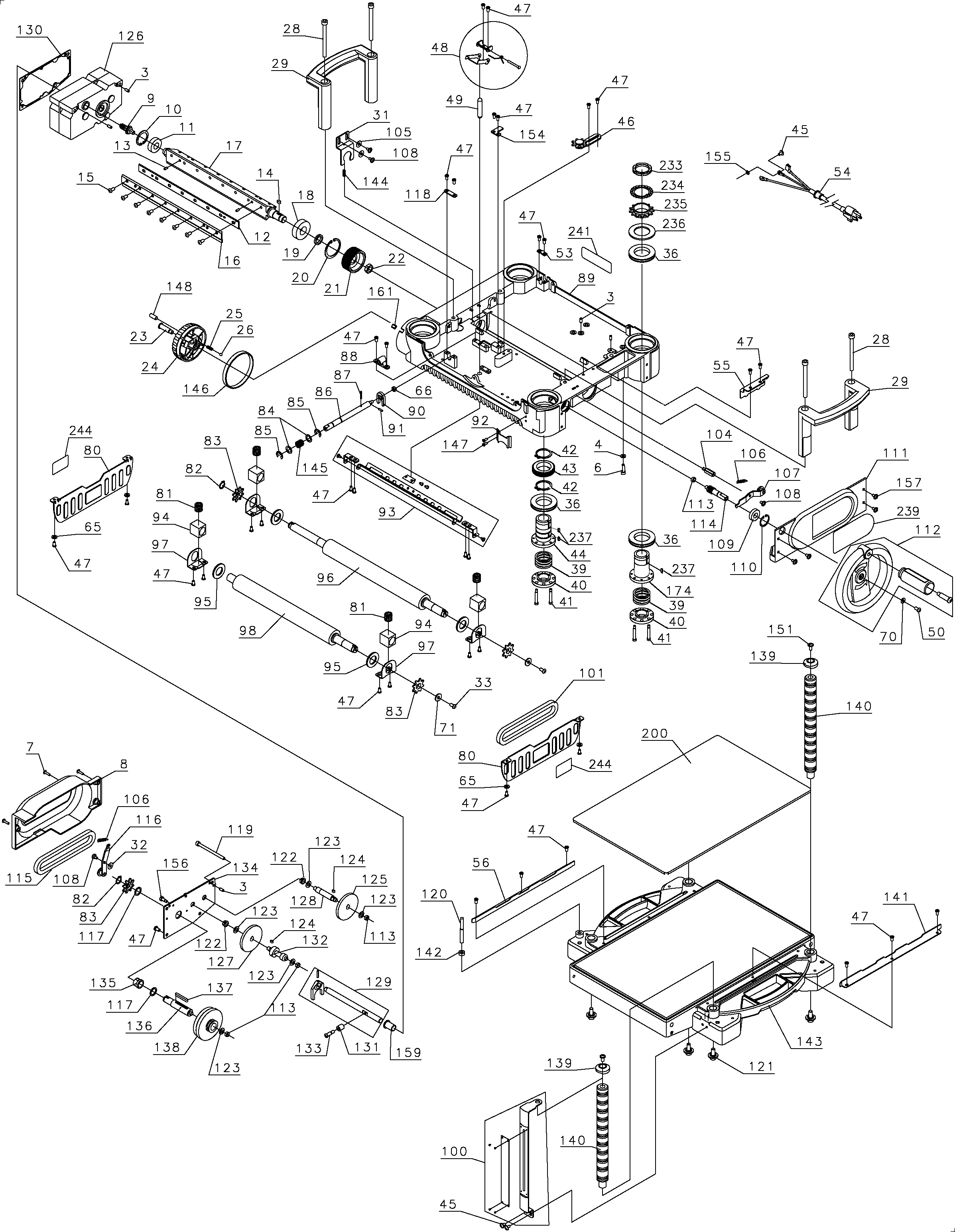

Exploded Diagram, Type 12
GIF
