DCS577X1

60V MAX* Brushless Cordless 7-1/4-In. Worm Drive Saw Kit

DEWALT cordless circular saw kit including a yellow and black carrying bag, a battery charger, and a 60V FLEXVOLT circular saw.

Reviews

Product details

Make smooth, accurate cuts with the 60V MAX* 7-1/4 in. Cordless worm drive saw. Ideal for professional framers, concrete formers, carpenters, and general contractors, this tool features a durable, high-grade magnesium shoe and an efficient brushless motor that delivers long runtime. As a Tool Connect Tag-ready product, this tool can be seamlessly integrated into the Tool Connect inventory management system. For user convenience, this kit includes (1) FLEXVOLT® 20V/60V MAX* 9ah battery, a charger, and a durable contractor bag for portability on the jobsite.

  • Designed with blade oriented to the left of the motor and the handle positioned at the rear of the saw for easy line of sight
  • The saw has an electronic brake that helps stops the blade after the trigger is released
  • Bevel capacity of 53° with stops at 45° and 22.5°
  • Durable, high-grade magnesium shoe and an efficient brushless motor for smooth, accurate cuts and long runtime
  • Achieves 2-7/16 in. Depth of cut at 90°
  • Includes a rafter hook that allows users to hang their tool for convenience
  • An integrated dust blower allows the user to clear its line of sight while cutting
  • Onboard blade wrench storage for convenience when changing blades
  • The 60V MAX* 7-1/4 in. Cordless worm drive style saw comes Tool Connect Tag-ready with pre-drilled holes for attaching a Tool Connect Tag (tag sold separately)

Product Type
Circular Saw
Voltage
60V
Cordless or Corded
Cordless
Power Source
Battery
Tool Only
No

  • (1) DCB609 FLEXVOLT® 20V/60V MAX* 9.0Ah Battery
  • (1) Blade Wrench
  • (1) FLEXVOLT® Carbide Tipped 7-1/4 in Circular Saw Blade
  • (1) User Instruction Manual
  • (1) Contractor Bag
  • (1) DCB118 20V MAX* Fan Corded Fast Charger

  • 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

* * Maximum initial battery voltage (measured without a workload) is 20 and 60 volts. Nominal voltage is 18 and 54.

* ** With a 9Ah battery versus the corded DWS535

Downloads and manuals

Instruction Manual, Type 1
N557205_DCS577.pdf
PDF

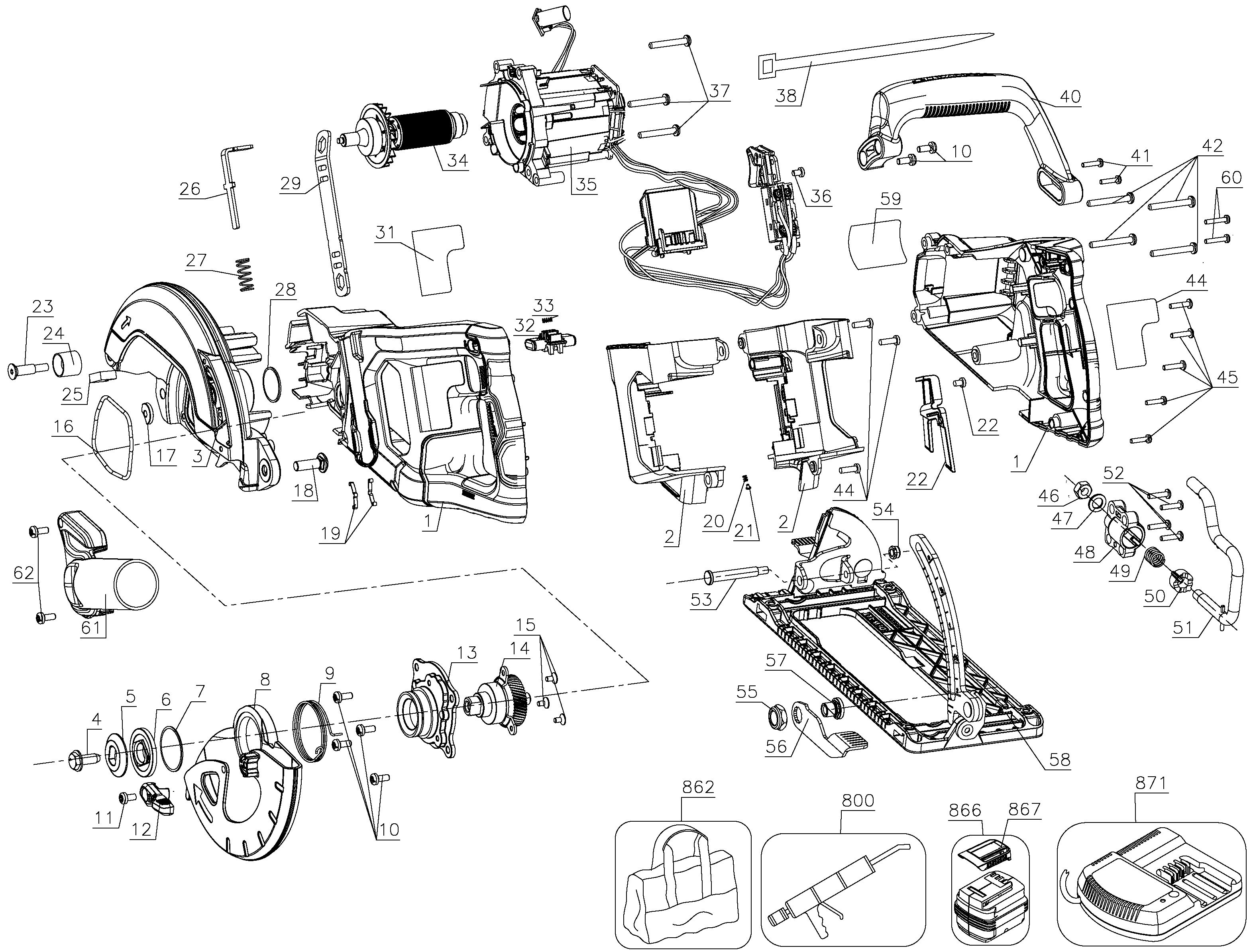

Exploded Diagram, Type 1
GIF
Exploded Diagram, Type 1
SB06175.docx
DOCX
