DEWALT logo with yellow text on a black background.
New
DCG420XGE2

ATOMIC™ 20V MAX* Extended Die Grinder Kit

A DeWALT cordless ratchet tool kit, featuring a black and yellow tool bag, a battery charger, a cordless ratchet tool, and two rechargeable XR batteries, all arranged side by side.

Reviews

Explore More Options

Current Option

Product details

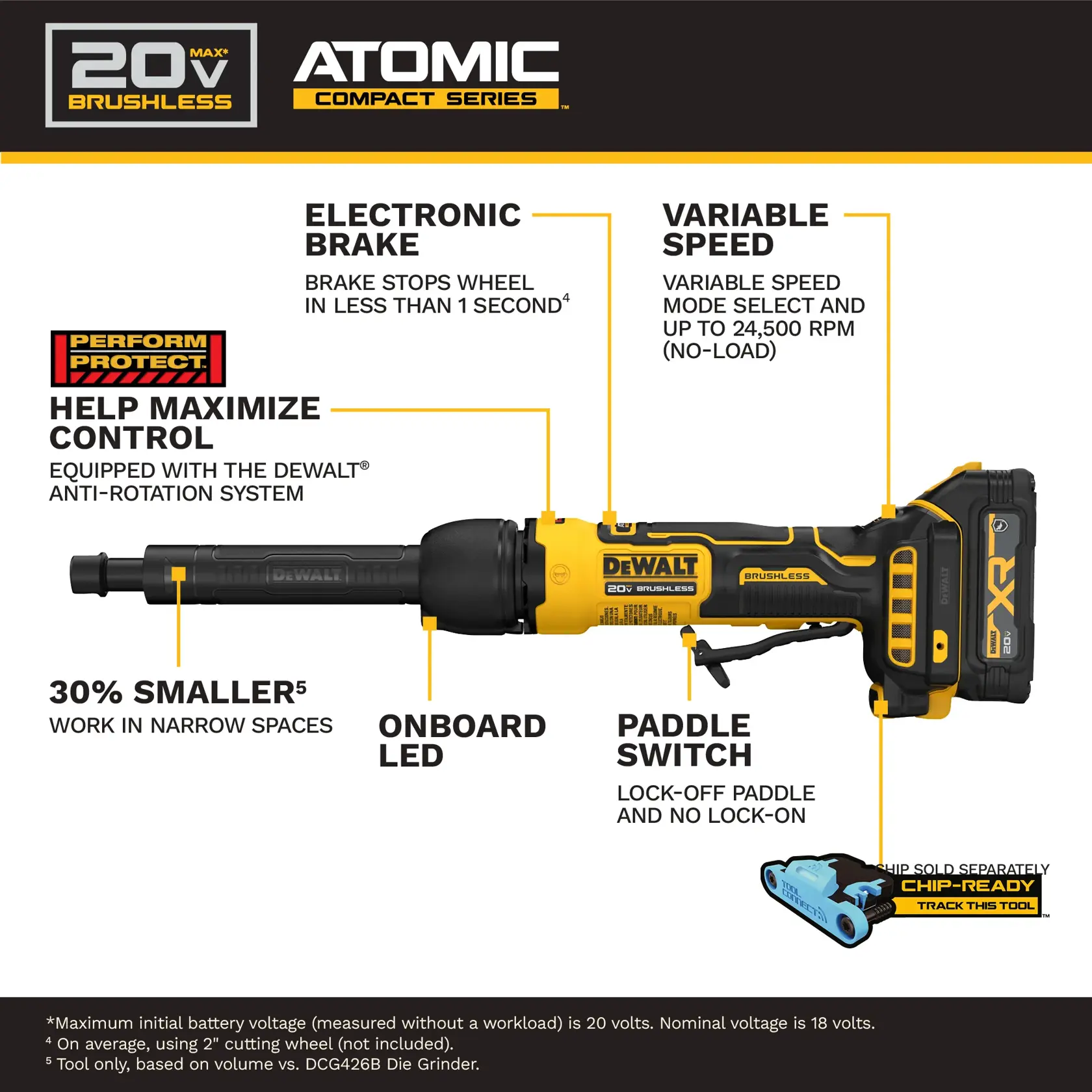

Complete metalworking applications in tight or narrow spaces with the ATOMIC™ 20V MAX* Extended Die Grinder Kit. Engineered for tough jobsites, the first battery-operated extended die grinder from DEWALT¹ is equipped with the DEWALT® ANTI-ROTATION System to help maximize control. Featuring a 35% slimmer neck for ideal ergonomics², this grinder keeps productivity high with up to 20% more power than 0.5 HP rated pneumatic die grinders³. Delivering variable speed control, the ATOMIC™ 20V MAX* Extended Die Grinder delivers untethered performance and pneumatic-like power without the hassle of hoses.

  • Help maximize control - equipped with the DEWALT® anti-rotation system
  • Brake stops wheel in less than 1 second⁴ - help maintain control after the ON/OFF trigger is released
  • 30% smaller⁵ - work in narrow spaces with a 35% slimmer neck²
  • Pneumatic-like power - up to 20% more power than 0.5 HP rated pneumatic die grinders³
  • Variable speed trigger - variable speed mode select and up to 24,500 RPM (no-load)
  • Fast wheel changes - spindle lock removes the need for multiple wrenches
  • Paddle switch - lock-off paddle and no lock-on
  • Forward exhaust system - help direct air away from the user
  • High visibility - bright LED
  • Tool Connect Chip ready - pair with the Tool Connect Chip (sold separately) and Tool Connect software⁶

Product Type
Die Grinder
Voltage
20V
Cordless or Corded
Cordless
Power Source
Battery
Tool Only
No

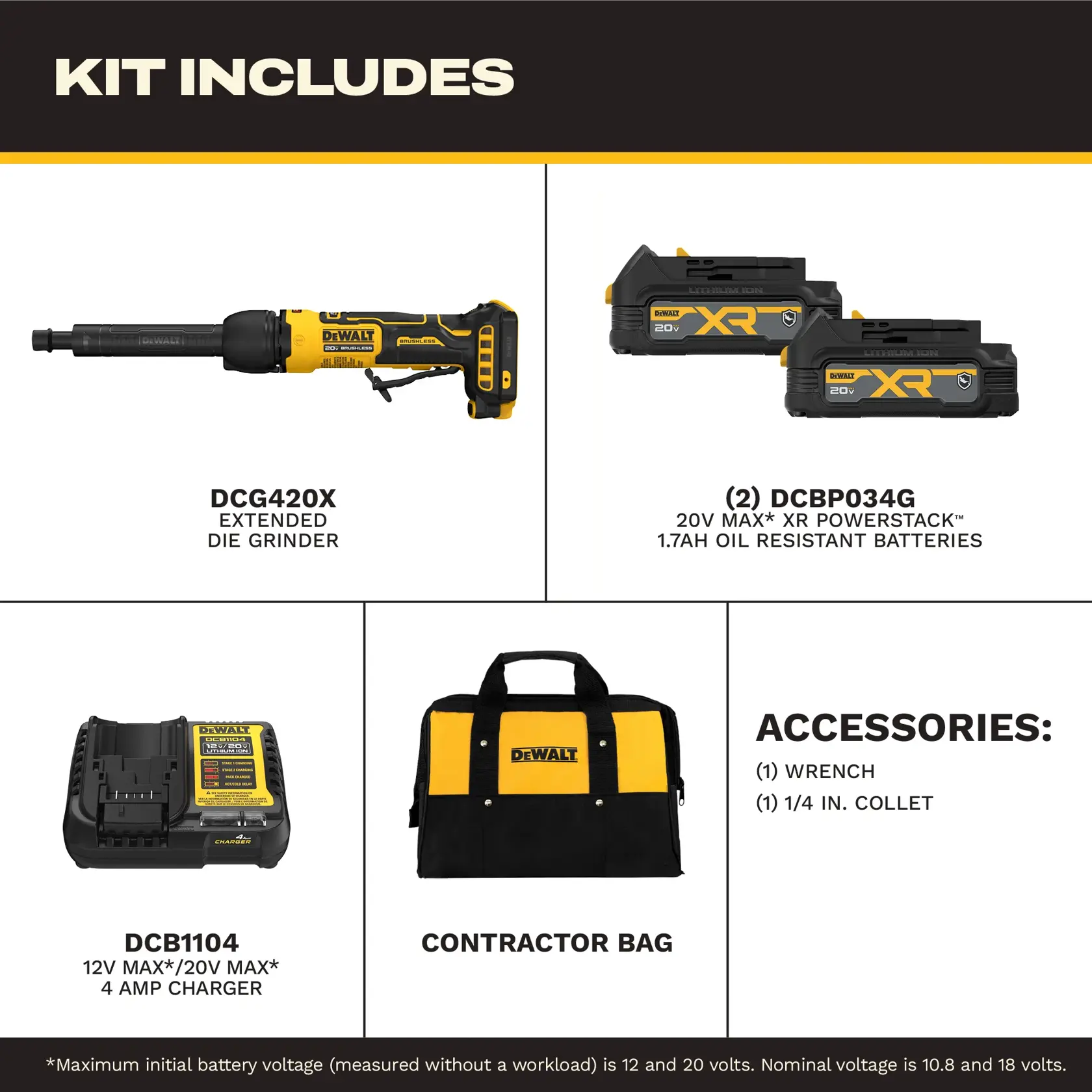

  • DCG420X ATOMIC™ 20V MAX* Extended Die Grinder
  • (2) 20V MAX* XR® Oil-Resistant 1.7 Ah Batteries
  • DCB1104 Charger
  • Wrench
  • 1/4 in. Collet
  • Kit Bag

  • 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

Downloads and manuals

Instruction Manual, Type 1
NA599856_DCG420X_T1_NA.278863.pdf
PDF
Exploded Diagram, Type 1
NA759626_DCG420X_T1_20251208.292843.svg
SVG
Exploded Diagram, Type 1
NA759626_DCG420X_T1_20260306.300188.svg
SVG
Exploded Diagram, Type 1
NA759626_DCG420X_T1_20260307.300189.svg
SVG
