DCD470X1

60V MAX* In-Line Stud And Joist Drill With E-Clutch System Kit

DEWALT cordless right angle drill kit with a yellow and black drill, battery pack, charger, and a black and yellow carry bag.

Reviews

Explore More Options

Current Option

Product details

Complete large-scale drilling applications with the 60V MAX* in-line stud and joist drill. Built with safety in mind, this tool features the anti-rotation E-CLUTCH system that senses the motion of the tool and shuts it down in bind-up situations. This kit also includes (1) FLEXVOLT® 20V/60V MAX* battery, a charger, and a durable storage bag for convenient portability.

  • Anti-rotation E-CLUTCH system detects the motion of the tool. This feature senses the motion of the tool and shuts it down if necessary. The red indicator LED illuminates when the E-CLUTCH system is engaged
  • 2 variable-speed ranges (0-400/ 0-1320 RPM) to match appropriate speed to the application
  • Magnesium gear case to reduce weight while maintaining jobsite durability
  • Power of the cord with cordless freedom
  • 60V MAX* brushless motor for increased power and runtime
  • Tool Connect Tag ready. Installing a DEWALT® tool tag allows for tracking and locating of the drill using the DEWALT® Tool Connect
  • Easily shift between 1st and 2nd speed without having to feather the trigger

Product Type
Stud & Joist Drill
Voltage
60V
Cordless or Corded
Cordless
Power Source
Battery
Motor Type
Brushless

  • (1) DCB609 Battery
  • (1) Contractor Bag
  • (1) DCB118 Fast Charger
  • (1) DCD470 In-Line Stud and Joist Drill

  • 3 Year Limited Warranty, 1 Year Free Service, 90 Days Satisfaction Guaranteed

We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.

Customer Support

* * Maximum initial battery voltage (measured without a workload) is 20 and 60 volts. Nominal voltage is 18 and 54.

Downloads and manuals

Instruction Manual, Type 2
NA253399_DCD470_T2_NA.pdf
PDF
Instruction Manual, Type 2
NA305260_DCD470_T2_NA.pdf
PDF

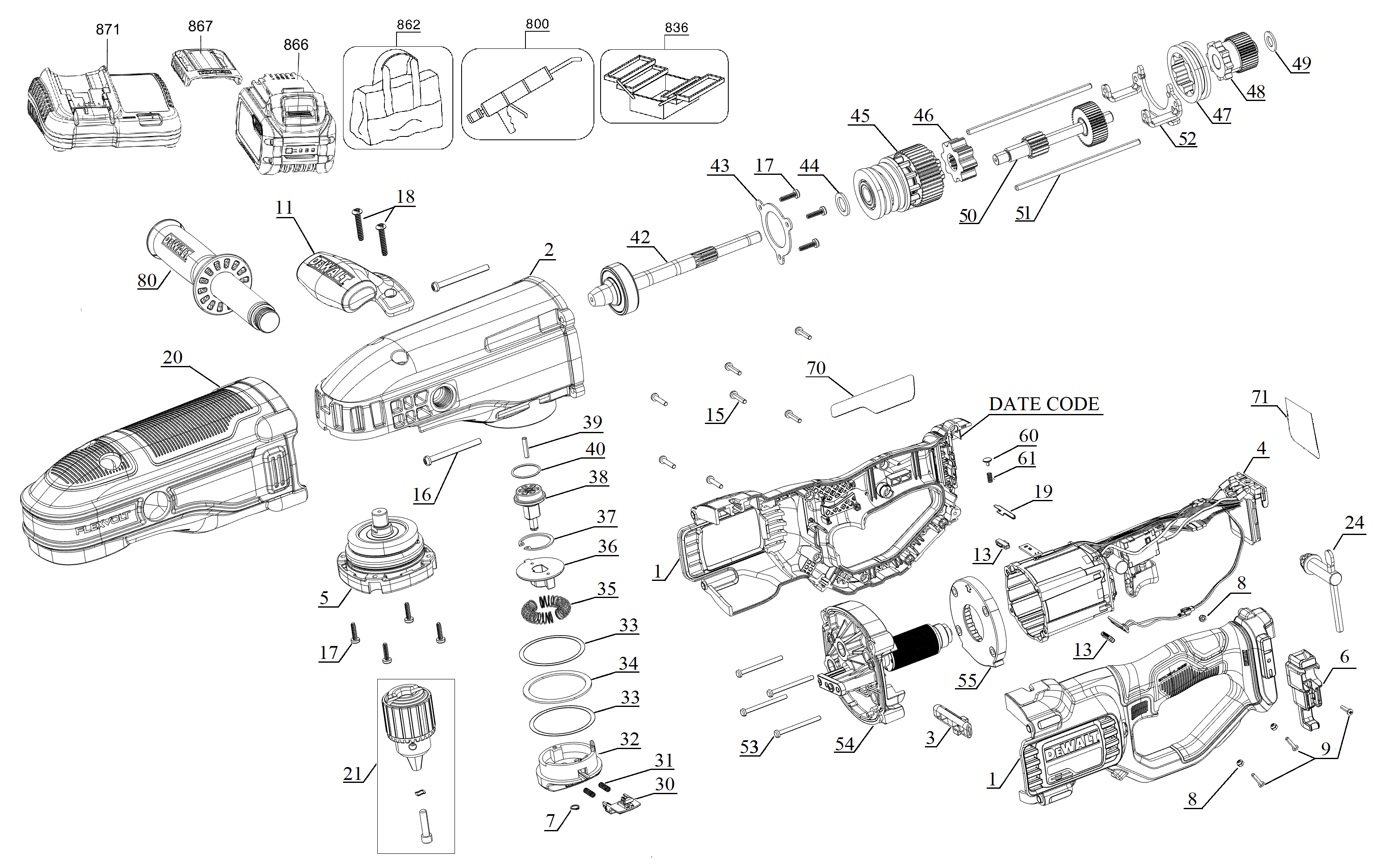

Exploded Diagram, Type 2
GIF

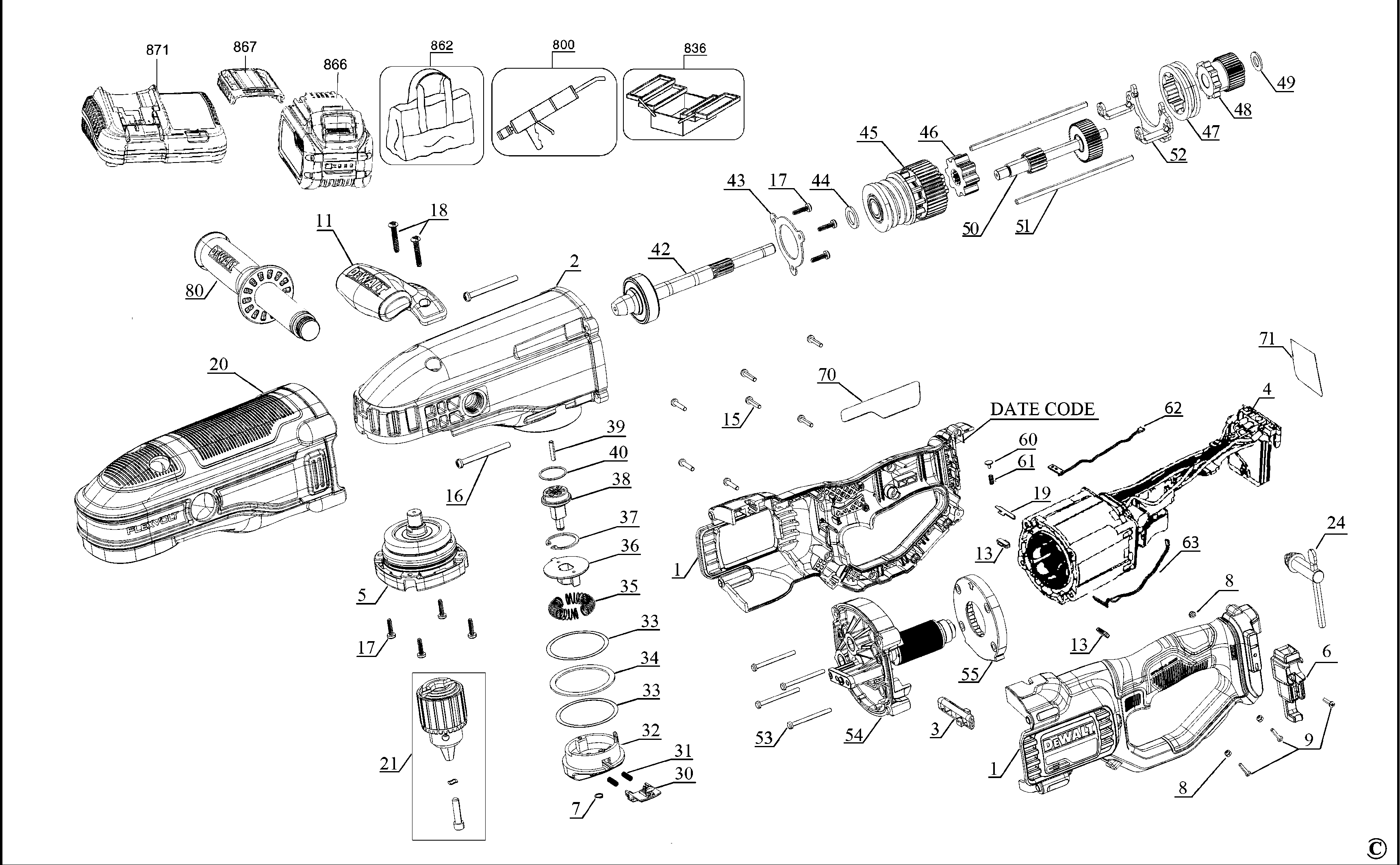

Exploded Diagram, Type 2
GIF
